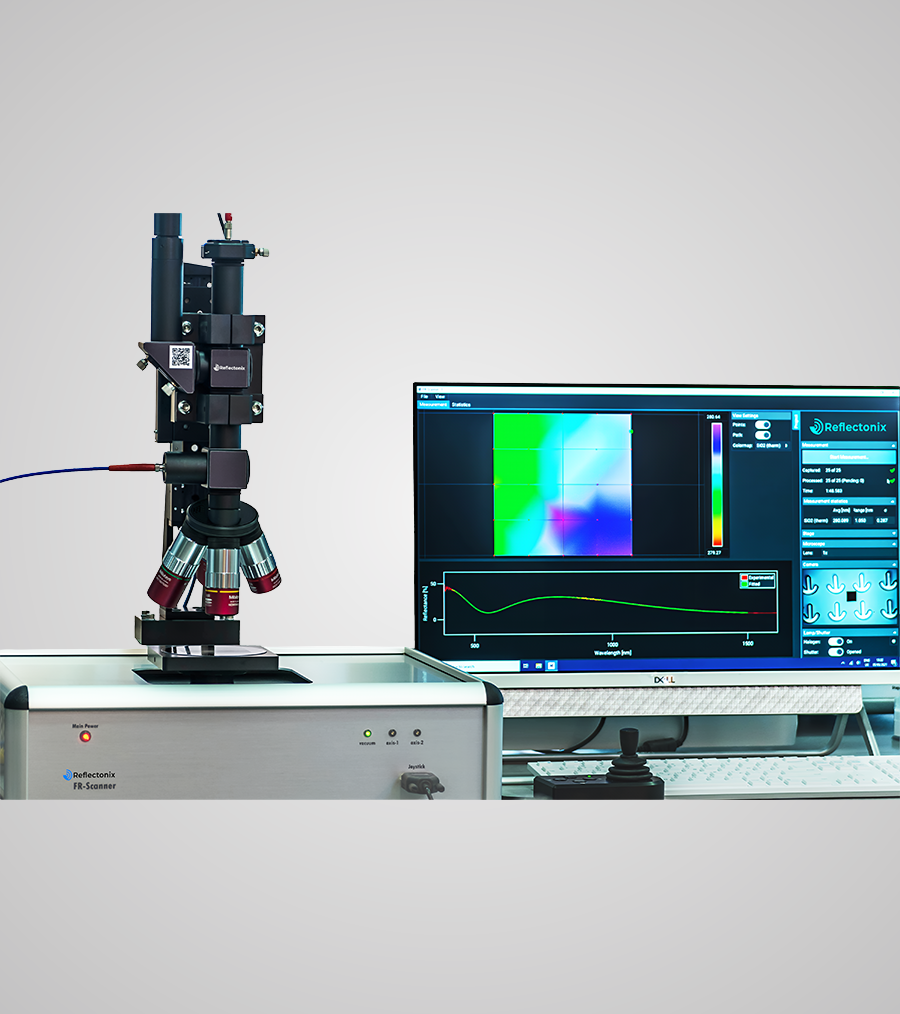

FR-Mic

With FR-Mic, local measurement of film thickness, optical constants, reflectance, transmission, and absorbance across any spectral regime within UV / VIS / NIR spectral range, is just a matter of a click. FR-Mic can be mounted either on FR-pRo units or over external manual or motorized stages when large surfaces need to be characterized.

FR-Mic is the modular optical column for fast & accurate coating characterization applications that require spot size as small as few micrometers. Typical examples include (but not limited to): micro-patterned surfaces, rough surfaces and numerous others. It can be combined with a wide range of computer controlled XY and RΘ stages, allowing the automated thickness & optical properties mapping of samples fast, easily and accurately.

FR-Mic provides:

• Real-time spectroscopic measurements
• Film thickness, optical properties, non-uniformity measurements, thickness mapping
• Imaging with an integrated, USB connected and high-quality color camera
• Numerous user-friendly functions e.g. Click2Move, Measurement scale.

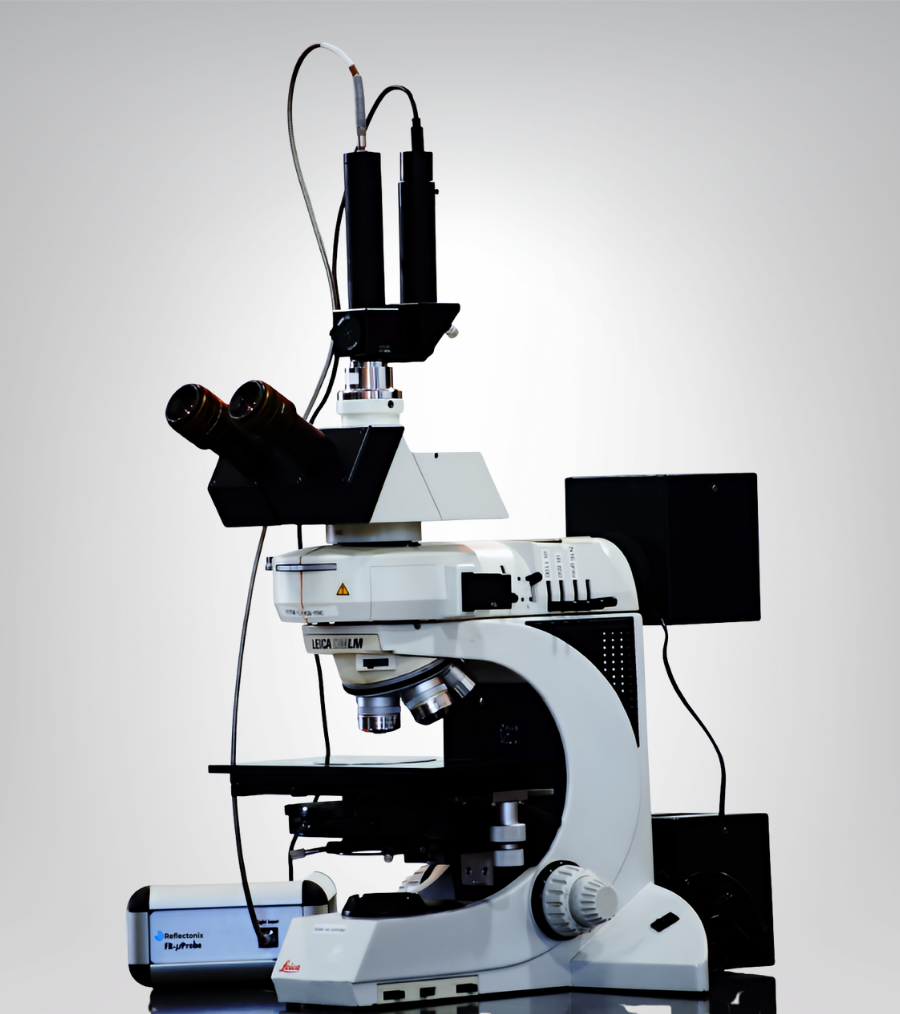

FR-uProbe

FR-uProbe, simply attaches to the C-mount adapter of most commercially available optical microscopes (reflectance and / or transmittance) and provides:

• Real-time spectroscopic measurements at the
  wavelength range supported by the microscope
• Film thickness, optical properties, non-uniformity
  measurements
• Imaging with an integrated, USB connected and
  high-resolution & quality color camera
• Unaffected performance of the microscope itself

The spot size, the area from which the reflectance or trasnmittance signal is collected is defined by the aperture size and objective lens magnification and can be as small as 2μm.
