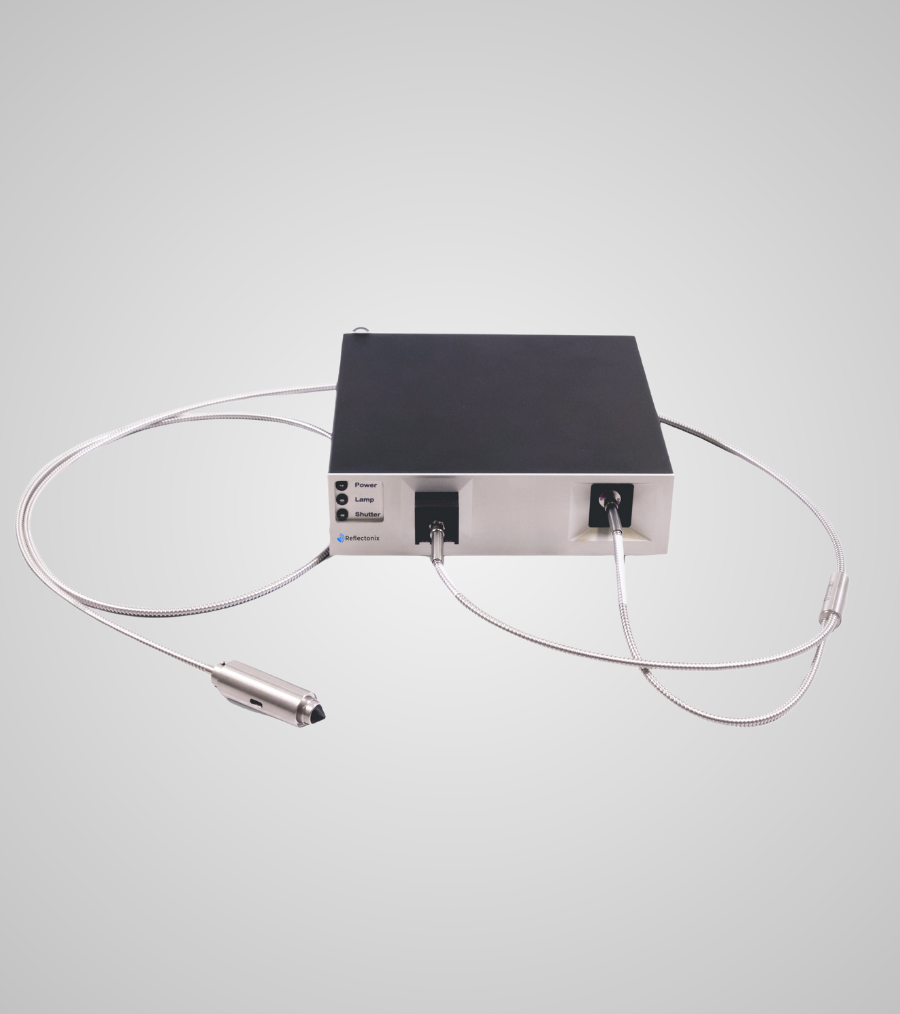

FR-ES

FR-ES is a compact and light-weighted unit for the non-destructive characterization of transparent and semi-transparent coatings in a wide thickness range and of thin metallic layers. FR-ES is the ideal configuration for research labs. With FR-ES, the user can perform reflectance reflectance and transmittance measurements in various spectral ranges.
FR-ES platform is designed to provide excellent performance in terms of characterization of coatings at a small footprint. It is employed in a wide range of diverse measurement applications: Film thickness, Refractive Index, Color, Transmittance, Reflectance, and many more.

There are five FR-ES configurations available:

• UV/VIS (200-850nm)
• UV/NIR-EXT (200-1000nm)
• UV/NIR-HR (190-1100nm)
• NIR-N1 (850-1050nm)
• NIR (900-1700nm)

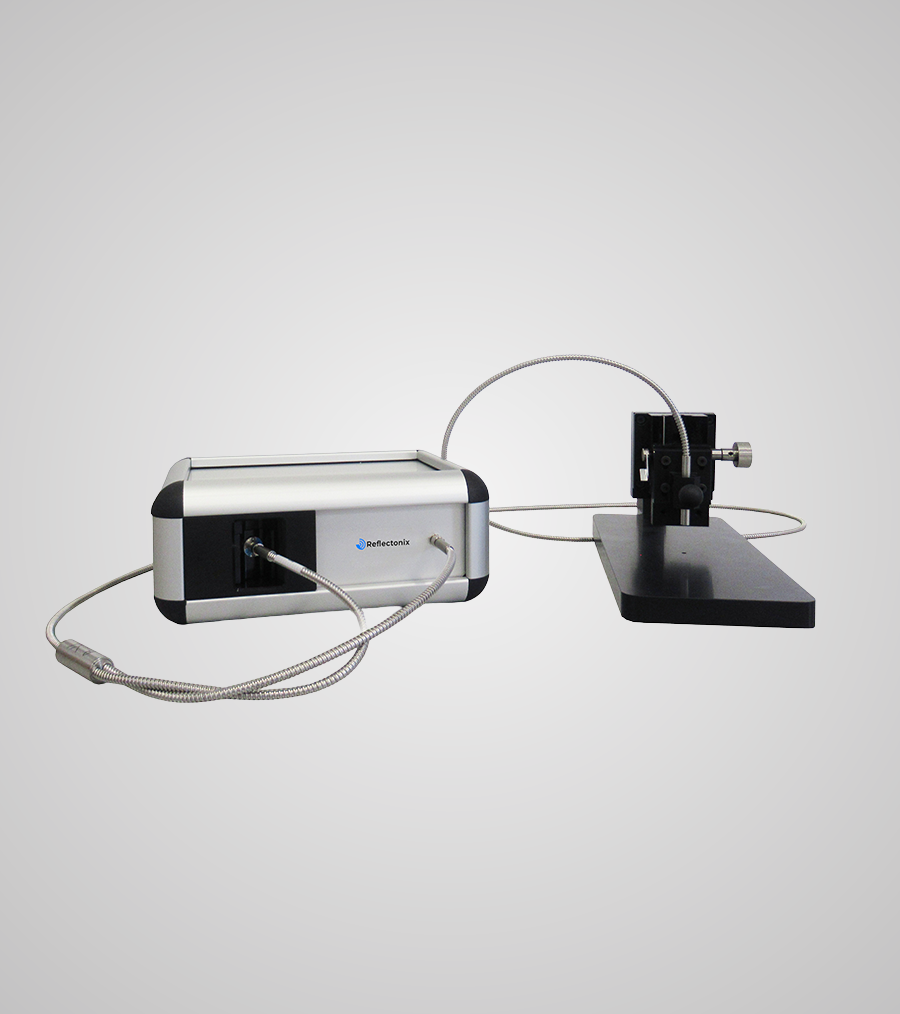

FR-Mini

FR-Mini is a compact unit especially designed for usage at university educational and research laboratories for the fast, accurate and non-destructive characterization of a wide range of diverse coatings. With FR-Mini the user can easily perform reflectance and/or transmittance measurements in a wide spectral range as well.

FR-Mini platform is designed to provide state-of-the art characterization of films (either supported on reflective and transparent substrates or un-supported films (e.g. PET foils) in a wide thickness range either for single or multi-layer stacks.

The tool is equipped with stabilized tungsten light source that ensure long operational lifetime without the need for frequent referencing.
FR-Mini is controlled by the same software, (FR-Monitor 4.0) used for more advanced FR-tools and is loaded with extremely large materials database and supports either static or dynamic measurements.

The tool is connected with any modern Windows PC through USB port. The set-up lasts few minutes only and the user can operate the tool immediately without any particular knowledge of optics.

FR-Mini can be employed in a wide range of diverse applications, such as: Film thickness, Refractive Index, Transmittance, Reflectance, and many more.

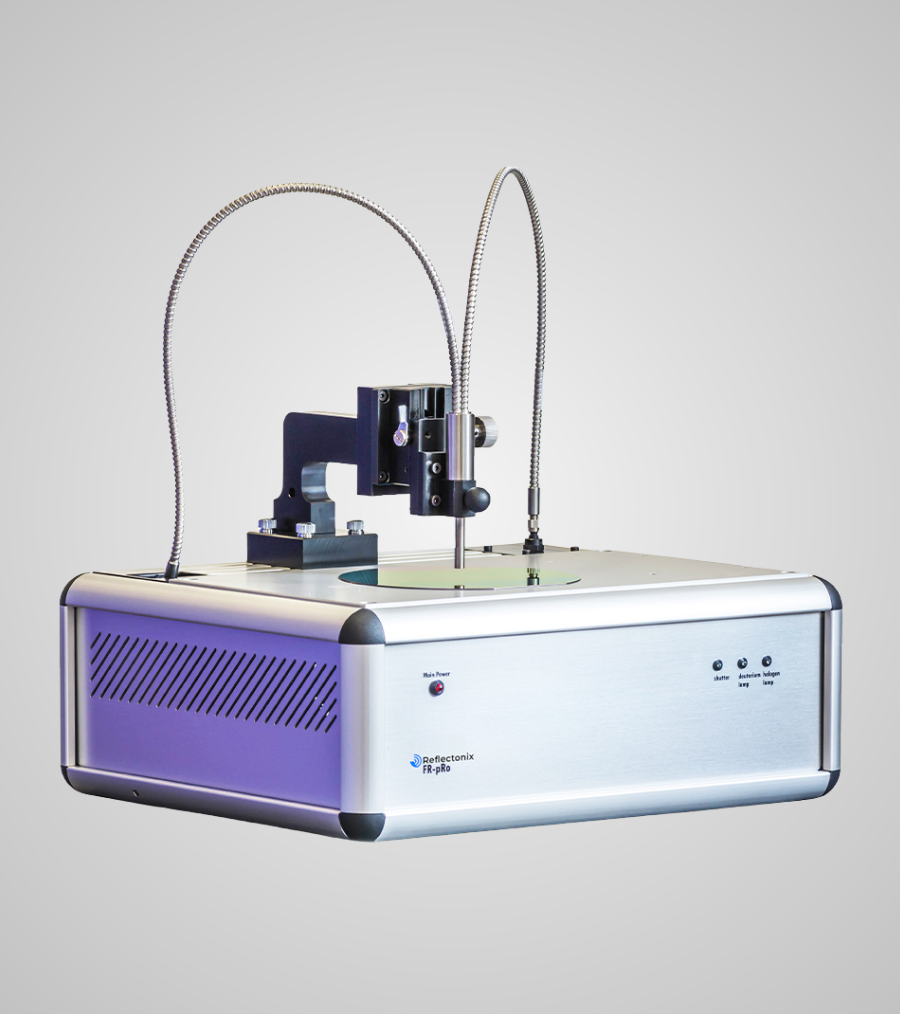

FR-pRo

The modular & expandable platform for the characterization of coatings in the 1nm-3mm thickness range. FR-pRo tools are tailored to meet the user needs for a wide range of diverse non-destructive characterization applications, such as: Film thickness, Refractive Index, Color, Transmittance, Reflectance, Film Characterization under temperature or ambient controlled environment or in liquid environment and many more.

FR-pRo tool is assembled by user selected modules. The Core Unit accommodates the light source, the spectrometer (for any spectral regime in the 190nm-2500nm range) and the control & communication electronics. The tool comes with a set of reference samples (Si reference, SiO2/Si, Si3/N4/SiO2/Si). Then, there is a wide range of Accessories, such as:

• Film Thickness kit for reflectance measurements,
• FR-Mic for measurements at very small areas,
• Manual & Motorized stages,
• Film/Cuvette Holder for Absorbance / Transmittance and chemical concentration measurements,
• Thermal or Liquid kits for measurements under controlled Temperature or in Liquid environment,
• Integration Spheres for diffuse & total reflectance
